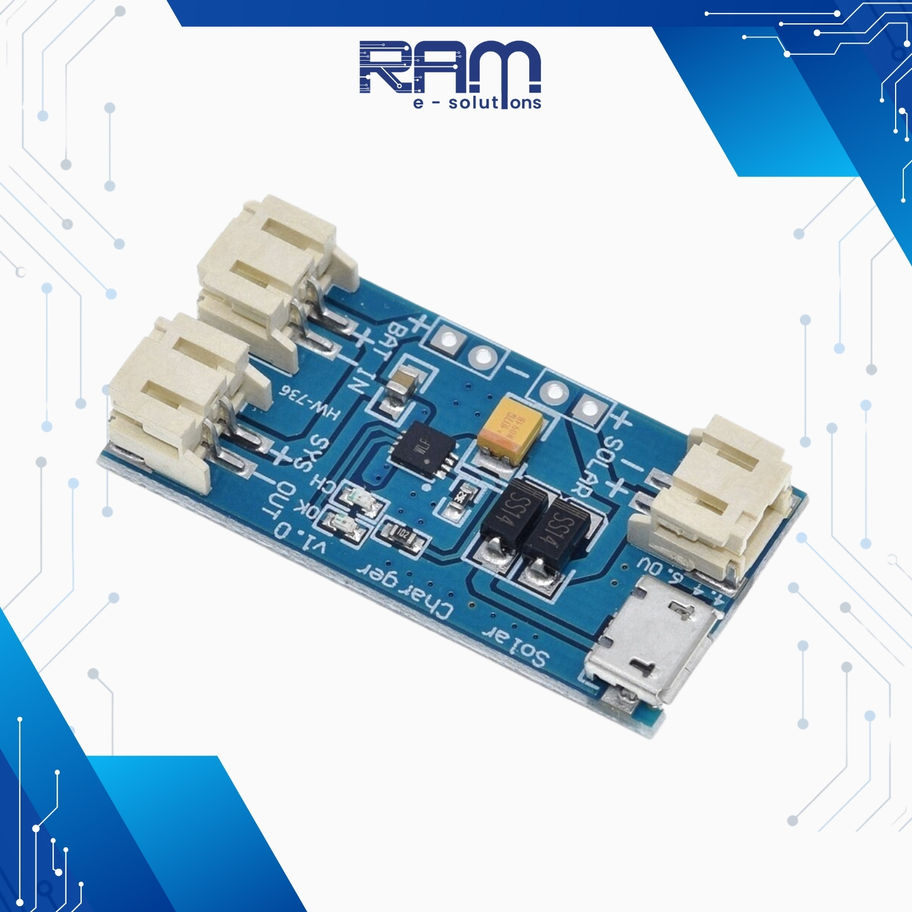

CN3065 500mA Mini Solar Lipo Charger Board

This is a Super-Mini Solar Lipo charger based on the CN3065 – a single lithium battery charge management chip. This Solar charger provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium-ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.

Features:

Solar panel input: 4.4-6V

Max charge current: 500mA

Interface: 2-pin JST connectors(or PH2.0)

Short circuit protection

Continuous Charge Current Up to 500mA

Battery status indication ( Red: Charging, Green: Charged )

Support USB Charge (Micro-USB Connector)

Package Includes:

1 x Mini Solar Lipo Charger Board

Specification:

Input Voltage Range 4.4 to 6VDC

Max Charge Current 500mA

Connector 2-Pin Connectors

Battery Status Indicator Red: Charging

Green: Charged

Length (mm) 39

Width (mm) 19

Height (mm) 7

Weight (gm) 5

Shipment Weight 0.01 kg

Shipment Dimensions 5 × 5 × 1 cm
