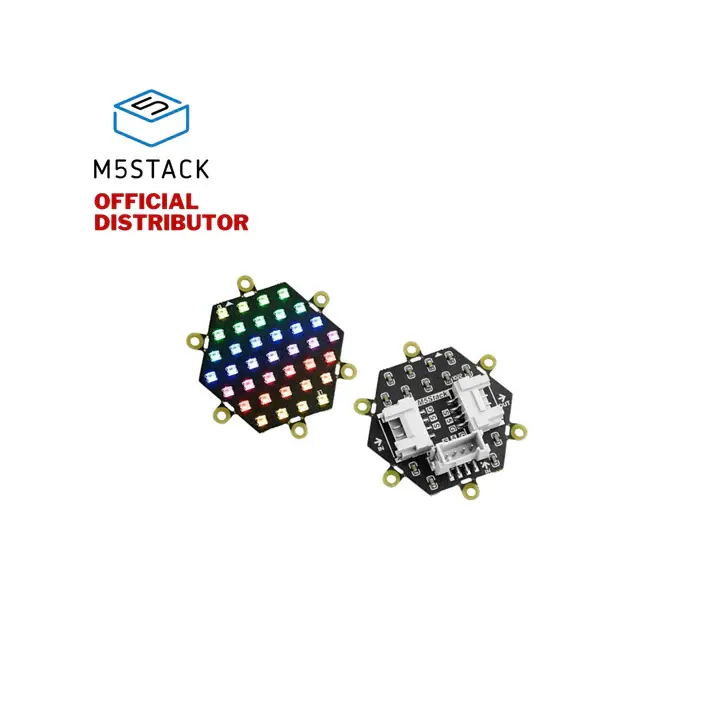

M5Stack NeoHEX 37 RGB LED Board (WS2812)

Description:

NeoHEX is an impressive hexagonal board featuring 37 RGB LED flexible beads, designed to create a visually stunning display. The board is controlled using a single BUS, allowing for easy integration and control. It supports the connection of multiple boards, enabling the creation of larger and more intricate lighting setups.NeoHEX board is designed with two sets of different angle input connectors, providing options for independent power supply and signal control. This flexibility allows for customized configurations and efficient power management.The board's external structure includes fixing ears, making installation hassle-free. The opal light sheet used in the NeoHEX board enhances the lighting effect by diffusing the light, creating a gentle and inviting glow. This diffusion effect transforms living spaces into unique and functional works of art, adding a touch of innovation and elegance to any environment.Whether used in residential or commercial settings, the NeoHEX board offers endless possibilities for creative lighting designs. Its vibrant RGB LED beads, single BUS control, multiple board connectivity, and diffusion technology make it a versatile choice for creating captivating lighting displays.es of functional art.

Features:

• WS2812C-2020-V1

• Number of LEDs: 37

• Support multiple boards connection

• 6x fixing ears (removable)

• Comes with opal light sheet

• Single pixel support 256 levels of brightness display, can be combined for 16777216 kinds of full color display

Specifications:

• LED Bead Model: WS2812C-2020-V1

• Number of light beads: 37

• Voltage supply: 3.7 ~ 5.3V

• Logic input level: -0.3V ~ VDD+0.7

• Output/output interface: HY2.0-4P interface: 2x input (signal, power), 1x output (extension)

• Refresh Rate: 30 frames (1024 cascades)

• Power consumption: Actual measurement of power consumption (37 lights are fully lit, brightness 100%)：

  • Red Light：DC5V@207mA

  • Green Light：DC5V@109mA

  • Blue Light：DC5V@208mA

  • White light：DC5V@568mA

• Adjustable brightness: Level 256

• Support Colors: 16777216 kinds of colors

• Fixing hole diameter: 2mm

• Net Weight: 3.7g

• Gross Weight: 9g

• Product Code: A045-B

• Product Size: 40*36*7mm

• Package Size: 93*138mm

Applications:

• Lighting decoration

Part List:

• 1x NeoHEX Unit

• 1x Opal light sheet

• 1x Power Consumption Reference Card

• 1x HY2.0-4P cable (20cm)
