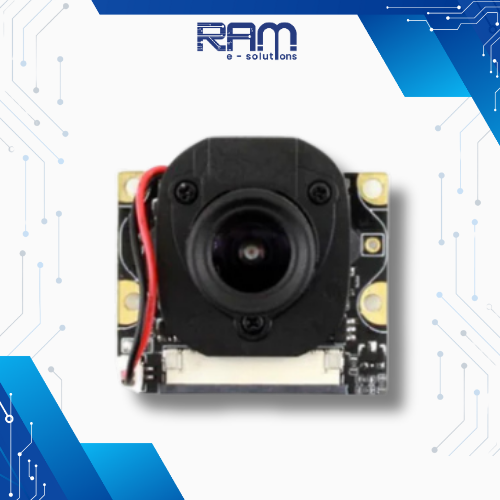

RPi IR CUT Camera

This IR-CUT version includes an IR filter switch giving you the best possible picture clarity in both day and night! During the day you can toggle the mode to Normal Mode by setting a chosen GPIO pin High, this disables the IR filter removing colour distortion from the filter. During the night, simply toggle the GPIO pin Low and the IR filter is enabled, when light levels drop too low the IR LEDs are activated and you are in night vision mode!

Our Raspberry Pi IR-CUT Night Vision Camera plugs directly into the CSI connector on the Raspberry Pi, and features two high intensity Infrared LED spotlights for night time recording! The IR LED's are powered directly from the CSI port, and are capable of lighting an area at a distance of up to 8m! In testing, the best images were captured at a distance of 3m to 5m. The camera also features an adjustable 3.6mm focal length and 75.7 degree viewing angle.

This Raspberry Pi night vision camera uses the same OV5647 as the standard Raspberry Pi camera, and is therefore able to deliver a crystal clear 5MP resolution image, or 1080p HD video recording at 30fps!

Features

• Raspberry Pi Camera, supports all revisions of the Pi

• Embedded removable IR-CUT filter, eliminating color distortion in the daylight

• Comes with infrared LED, supports night vision

• 5 megapixel OV5647 sensor

• Camera specifications

  • CCD size : 1/4inch

  • Aperture (F) : 1.8

  • Focal Length : 3.6mm adjustable

  • Field of View : 75.7 degree

  • Sensor best resolution : 1080p

• 4 screw holes

  • Used for attachment

  • Provides 3.3V power output

  • Supports connecting infrared LED and/or fill flash LED

• Dimension: 31mm × 32mm

Package Contents

• Raspberry Pi IR-CUT Camera Board × 1

• Infrared LED Board × 2

• 15-Pin FFC CSI Cable × 1

• Mounting Hardware
